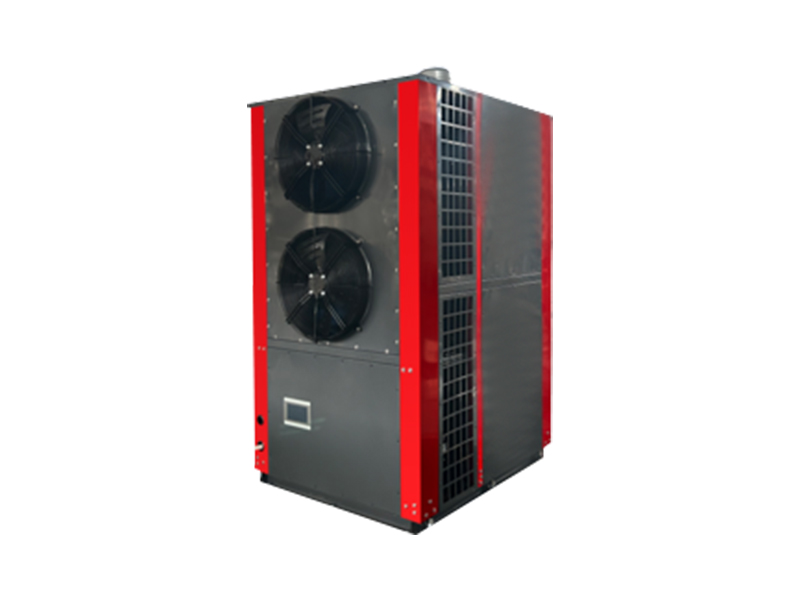

Integrated high-temperature heat pump hot air unit, full DC frequency conversion, maximum outlet temperature 95°C, COP≥2.5.
Anti-corrosion high-temperature hot air unit can be customized and developed, and the air duct is made of Teflon material, which is suitable for high-temperature drying of semiconductors, hardware, electroplating parts, chemicals, etc
| Product model | NCYLK-451IXH-BP02 |
| Power supply | 380V 3N～ 50Hz |
| Electric shock protection rating | Class I |
| Protection level | IPX4 |
| Heat pump rating custom heat | 45kW |
| Heat pump rated power consumption | 15kW |
| The maximum power consumption of the heat pump | 22kW |
| Maximum working current of the heat pump | 42A |
| maximum pressure | 3.5Mpa |
| Refrigerant | R134a/8kg |
| Noise | ≤70 dB(A) |
| Dimensions (L*W*H) | 850*1300*2560 |
| Net weight | 1000 kg |
The model, parameters, and performance will be changed due to product improvements, and the specific parameters are subject to the product nameplate.
