| Product model | 6HP |
| Suitable power supply | 220V/50Hz |
| Rated heat (7C/45°C) | 18.0kW |
| Rated thermal input power | 4.77kW |
| Customized thermal COP | 3.77 |
| Nominal Heat Control (-12°C/41°C) | 13.2kW |
| Nominal heat input power | 5.08kW |
| Nominal heat COP | 2.6 |
| Low temperature heating (-20°C/41°C) | 11.8kW |
| Input power for low-temperature heating | 5.32kW |
| Low temperature heating COP | 2.22 |
| Nominal cooling capacity (35C/7°C) | 14.0kW |
| Nominal cooling input power | 4.86kW |
| Nominal refrigeration COP | 2.88 |
| Maximum input power | 6.1kW |
| Maximum input current | 28A |
| APF(41℃) | 3.38 |
| HSPF(35℃/55℃) | 3,772.68 |
| Refrigerant type | R32 |
| Circulating water volume | 2.45m³/h |
| Water spout size | DN32 |
| Unit noise | ≤58dB(A)) |
| Product weight | 151kg |

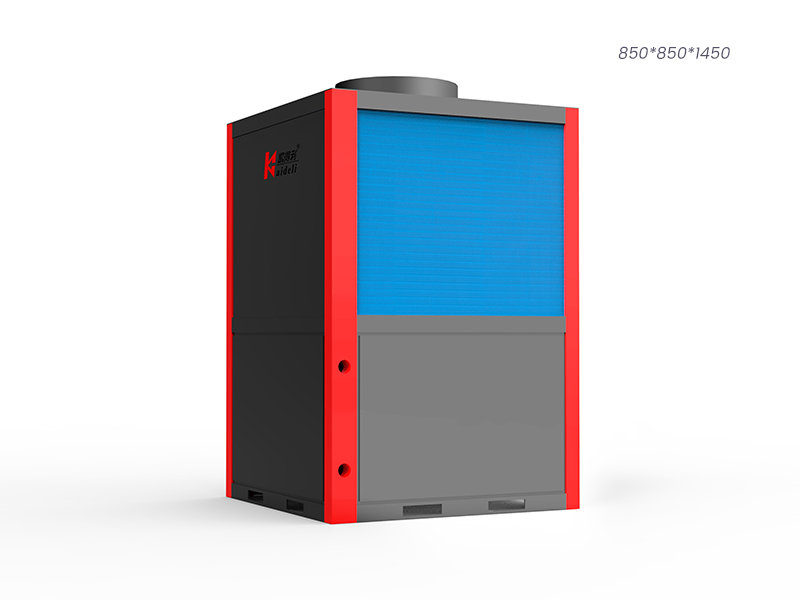

| Product Size (mm) | 850*850*1450 |
The model, parameters, and performance will be changed due to product improvements, and the specific parameters are subject to the product nameplate.
