| Product model | 5HP |
| Suitable power supply | 220V~50Hz |
| Rated heat (7C/45°C) | 15.0kW |
| Rated thermal input power | 4.18kW |
| Customized thermal COP | 3.59 |
| Nominal Heat Control (-12°C/41°C) | 11.5kW |
| Nominal heat input power | 4.51kW |
| Nominal heat COP | 2.55 |
| Low temperature heating (-20°C/41°C) | 9.5kW |
| Input power for low-temperature heating | 4.30kW |
| Low temperature heating COP | 2.21 |
| Nominal cooling capacity (35C/7°C) | 12.0kW |
| Nominal cooling input power | 4.48kW |
| Nominal refrigeration COP | 2.68 |
| Maximum input power | 5.4kW |
| Maximum input current | 25A |
| APF(41℃) | 3.35 |
| HSPF(35℃/55℃) | 3.71/2.7 |
| Refrigerant type | R32 |
| Circulating water volume | 2.10m³/h |
| Water spout size | DN32 |
| Unit noise | ≤56dB(A) |
| Product weight | 138kg |

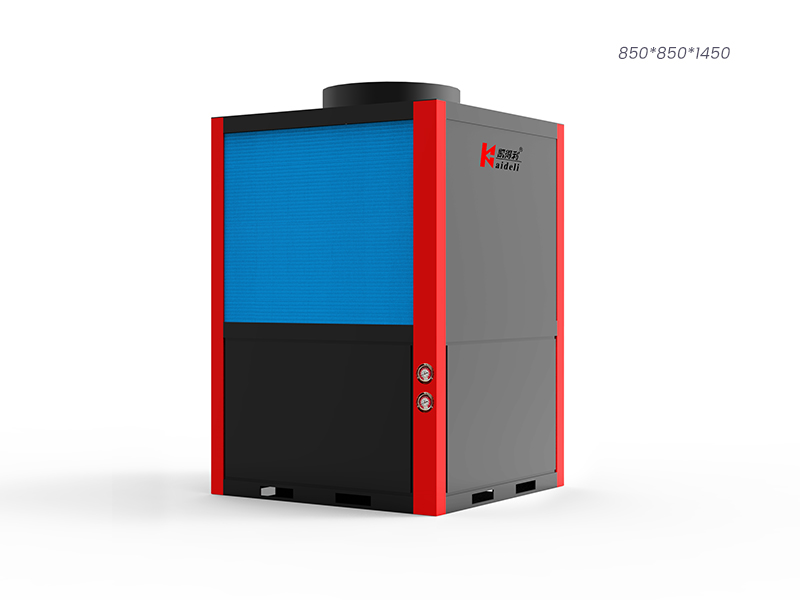

| Product Size (mm) | 850*850*1450 |
